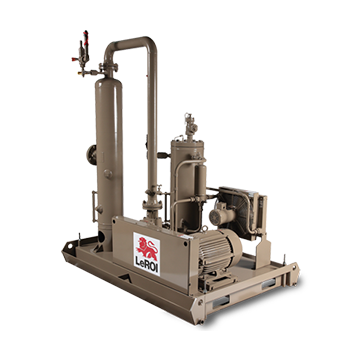

Gas Screw Compressors – HG10-and-HGF10 Series

BENEFITS

The HG10 and HGF10 Series are suitable for applications to 90 BHP (67 KW) and 350 PSIG (24.1 BARG) discharge pressure.

Low maintenance and high reliability are inherent with rotary screws when compressing natural gas because they have few moving parts. There are no valves, rings or packing to wear out or cause loss of efficiency.

Smooth operation results from no unbalanced forces and no pressure pulsation. No foundation is required. There are no piping vibrations from pressure pulsation.

Natural gas engine or electric motor drives are equally acceptable with rotary screw gas air compressors.

LeROI Gas Screw Compressors are available in 13 models covering a flow range of 20 (0.4 M³/min) to 15,000 MSCFD (300 M³/min) and horsepower from 10 (7.46 KW) to 800 (596.8 KW).

PERFORMANCE

• Maximum Brake HP - 125 HP (93.2 kW)
• Flow Range (MSCFD) - 500 Max (10 M³/min) @ STD Inlet Conditions
• Inlet Pressure
  • 20" Hg Vac. Min.* (508 mm/Hg)
  • 50 PSIG Max. (3.45 BARG)
• Maximum Discharge Pressure - 400 PSIG (27.6 BARG)
• Speed Range
  • HG10000
    • 2,650 RPM Min.
    • 5,400 RPM Max.
  • HGF10000
    • 1,770 RPM Min.
    • 3,600 RPM Max.

*Consult Factory for use with low vacuum inlet or discharge pressures.

FEATURES

The HG10 can be belt driven or direct coupled to electric motors for maximum flexibility at minimum cost. The natural gas compressor shaft bearings can absorb the belt side load without additional pillow block bearing supports up to 30 HP (22 KW). The HGF10000 is suitable for direct coupling to engines and electric motors.

Single-Stage operation up to 400 PSIG (27.6 BARG) maximum is possible with the HG10 and HGF10 Series oil-flooded compressors. Compressor packages are therefore simple, reliable and inexpensive.

The gas differential pressure provides oil circulation for proper lubrication at differential pressures over 70 PSI (4.82 BAR). An auxiliary oil pump is required on applications below 70 PSI (4.82 BAR) differential pressure.

Discharge porting can be selected to match the internal compression to the application requirement for maximum compression efficiency.

All iron or steel construction with no copper or copper alloys makes these compressors compatible with natural gas, sweet or sour.

TECHNICAL SPECIFICATIONS

• Models HG10000 and HGF10000
• Rotor Dia. 108 mm (4.25 inches)
• Rotor L/D 1.65
• Rotor Description: Twin Screw SRM Profile with Sealing Strips, 4 Lobe Male, 6 Lobe Female
• Shaft Seal(s) – Mechanical*
• Drive System:
  • HG10000 is suitable for direct coupling to electric motors or V-Belt Drive - oversized input shaft bearings for belt side load up to 30 HP (22 KW).
    • Rotation – Facing Shaft – CCLW
    • Drive Shaft 1.44” Dia. with 3/8” Square KeyInternal Helical Speed Increasing Gears (AGMA 11)
  • HGF10000 is CLW rotation suitable for direct coupling to engines or electric motors.
    • Drive Shaft 1.44” with 3/8” Square Key
• Materials:
  • Rotors – Ductile Iron 80-55-06
  • Castings – Cast Iron G3000
  • Bearings – Roller bearings on the inlet end and tapered roller bearings on the discharge end – alloy steel races, rolling elements and cages.
• Weight 250 Pounds (113.3 KG)

OPTIONS

• Internal Volume Ratio: Three volume ratios are available for matching compressor performance to pressure conditions.
  • High Ratio – 4.4
  • Medium Ratio – 3.0
  • Low Ratio – 1.9
• Versatrol Internal Bypass Valves
• Fan Shaft: A fan shaft is available for use with a direct mounted fan (side load is not acceptable so cannot be used for belt drive).
• Oil Pump: Integral oil pump is available for low-pressure differential applications, with or without fan shaft.
• SAE # 3 Bell Housing: Modules with oil cooler, aftercooler, gas/oil reservoir assembly, thermal valve, fan, oil filter assembly, minimum pressure valve and sight glass are all mounted on a steel subbase with  connected components. Drive motor, belts, pulleys, guard and electric motor driven cooling fan are also available.

APPLICATIONS

• Gas Gathering
• Well Head Gas Compression
• Fuel Gas Boosting
• Vapor Recovery
• Inert Gas Boosting
• Landfill Gas
